Laserschweiβgeräte

Lantec Láser gehört zu den Unternehmen mit der gröβten Erfahrung in der Fertigung von Spezialmaschinen und Geräten für Laserschweiβtechnologie in Europa.

Hier einige Beispiele der von uns durchgeführten Laserschweiβprojekte.

Laser welding of stainless steel

Laser welding of stainless steel filter to an aluminum casing.

Solid shaft laser welded to a sintered cam

With 5mm penetration the solid shaft is welded to a sintered cam. By using 2Kw and an appropriate speed a perfect joint is achieved. It is for a industrial work machine.

Laser seam welding for clutch plates

Laser seam welding for clutch plates. Joint of two plates „sewed“ together. The welding is made by shooting through the upper plate and penetrating the lower plate. A CO2 2.5 Kw equipment is convenient for this application.

Laser drilling in inner tube damper

Laser drilling in inner tube damper. 1 mm holes in a tube, thickness 1.2mm, are produced by using laser. The tube is finished given the minimum level of resulting burr. A small 300w CO2 laser gives us the appropriate cutting quality and speed. The machine has an automatic tube loader.

Inner tube laser welding using 2Kw fiber laser

Inner tube laser welding to a flange, washer, support and slide using 2Kw fiber laser and 2D scan head.

Cutting discs laser welding

Development of the machinery for the manufacture of cutting discs, welding the diamond material to the steel disc with laser.

High precision cutting of stainless steel

High precision cutting of stainless steel sheet of 0.2 mm thickness. A scanner able to process 20 holes in 5 secs is used for the cutting.

Continuous cut of stainless steel

Continuous cut of stainless steel strapping

Different geometries are made in a small stainless steel strapping 0.2 mm thickness with a „cutting on the fly“ system. The resulting scrap is filtered. 100 W Fiber laser is the appropriate.

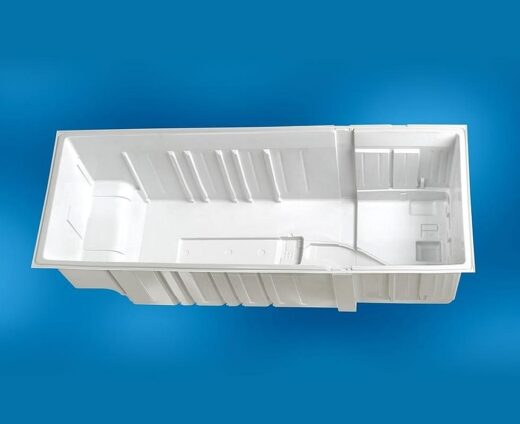

Laser cutting for fridge inner lining manufacturing

Laser cutting for fridge inner lining manufacturing

Thermal solar panel laser

Thermal solar panel laser welded with YAG pulse laser and two welding heads. The copper tube and the aluminium sheet welding are made on both sides of the copper tube by welding 600 points per meter.

For this project, a Nd YAG laser has been used.

Welding laser for hydraulic cylinders manufacturing

The system searches the joint and shoots the beam to the joint. A 3 Kw CO2 laser is been used.

CNC tables for lab applications

Our tables are ideal for precision laboratory applications, technology centers, universities, etc… and in different laser applications such as cutting, welding, cladding , etc.

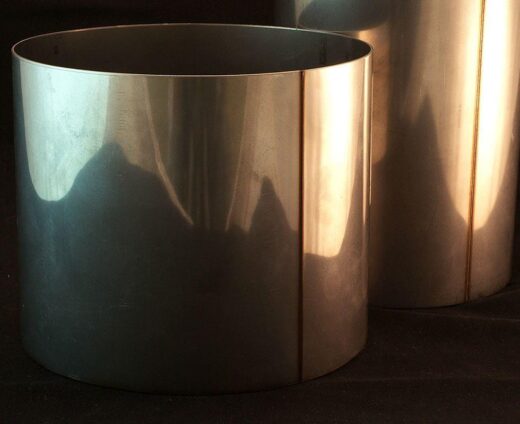

Stainless steel pressure vessels welding

The system is capable of bending and packing the stainless steel sheet forming a tube. The system searches the joint and produces a precise laser welding. CO2 2500 w laser is used.

Ver vídeo

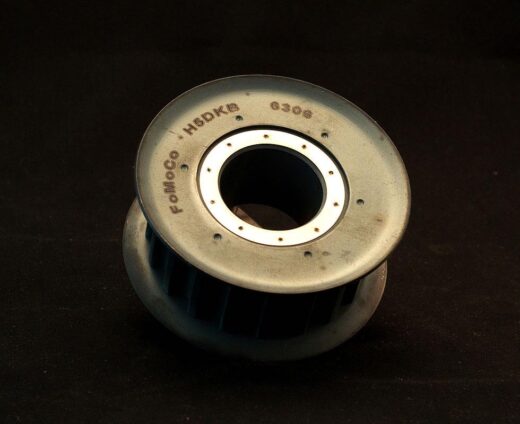

YAG pulsed laser welding

YAG pulsed laser welding to weld a diamond washer to a sintered pulley as a part of an automobile engine.

Laser welding of steering column mounting bracket laser

Laser welding of steering column mounting bracket laser welded with a 3Kw fiber laser and welding seams produced with scan head.

Laser welding of tube using 2kW fiber laser and 2D scan head

Laser welding of tube using 2kW fiber laser and 2D scan head.

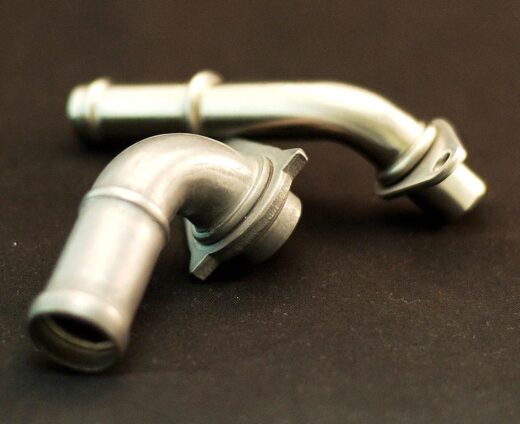

Stainless steel hose laser welding

A flange is welded to an automotive hose with CO2 laser. The welding is practically invisible.

Heatsink laser welding

Heatsink laser welding by butt joining aluminum plates of 1 + 0.6 mm thick with 1 Kw fiber laser provided with two process fiber, beam switch, and two welding heads.

Soldadura láser de tres elementos

Soldadura láser de tres elementos individuales, para el conformado de la pieza portadora del tren de potencia para automoción, mediante cabezal 2D y láser de fibra de 3kw.

special welding head

Circular Weld head for special application

Your special welding head can be specifically designed and manufactured to meet your needs, in this case a circular Weld
